膜生物反应器 (MBR) 和移动床生物膜反应器 (MBBR)

膜生物反应器 (MBR)  DAACH 的膜生物反应器（MBR）是一种独特且紧凑的污水处理工艺, 其将污泥好氧生物处理工艺与集成浸没式膜设备结合在一起. 该工艺在市政、工业废水处理以及中水回用中具有广泛的应用

DAACH的 MBR 系统是一种将污水的二级处理、三级处理与高级处理工艺相结合的综合处理工艺.其出水水质佳, BOD 去除率可达 98％, 可实现部分脱氮或完全脱氮作用, 并能够有效降低浊度值(<0.3NTU) 和SDI值(<3.0).出水可以回用作景观水、冲洗水或进入到纳滤或反渗透系统进一步净化

DAACH的 MBR 系统可以集成至集装箱内, 也可根据情况进行土建设计安装.

DAACH膜生物反应器的优势:

  • 占地空间小

  • 颗粒物去除率佳

  • 较低或无附加费用

  • 工艺更有保障

  • 产泥量少

  • 运行成本低

  • 容积负荷高

  • 水力停留时间和污泥停留时间互不影响

移动床生物膜反应器 (MBBR)

DAACH 的移动床生物膜反应器（MBBR）是一种高效的生物处理工艺, 其将传统的活性污泥与 DAACH 的生物膜填料相结合. 该工艺广泛适用于各类市政和工业废水处理, 尤其是针对需要去除营养物质和生物需氧量 （BOD） 的废水.

与其他传统处理系统相比, DAACH 的 MBBR 可节省 30% 到 40% 的空间. 这意味着现场施工作业量将大大减少, 安装和调试将更快速. DAACH 的 MBBR 设计系统持久耐用, 便于运输和安装, 易于维护, 最大化的降低了维护成本和土建工作量.


DAACH移动床生物膜反应器的优势：

  • 处理效率高, 占地面积小

  • 设计独特的填料, 经久耐用

  • 随着污泥沉降而增长

  • 产泥量低

  • 污泥产量低, 因而污泥处理和处置的成本较低


MEMBRANE BIO REACTOR (MBR) AND MOVING BED BIOFILM REACTOR (MBBR)

Membrane Bio Reactor (MBR)

DAACH’s Membrane Bio Reactor (MBR) is a unique and compact wastewater treatment process combining a single sludge aerobic biological treatment process with an integrated, immersed membrane. This process is ideally suited in a wide range of municipal and industrial wastewater treatment applications including water reuse.

DAACH’s MBR combines secondary, tertiary and advanced wastewater treatments. It can produce high quality effluent with up to 98% BOD removal, complete denitrification and partial denitrification, Treated effluent has low turbidity values (<0.3 NTU) and SDI values (<3.0) and Water can be reused for landscaping, flushing or feed to NF or RO Systems for complete water purification.

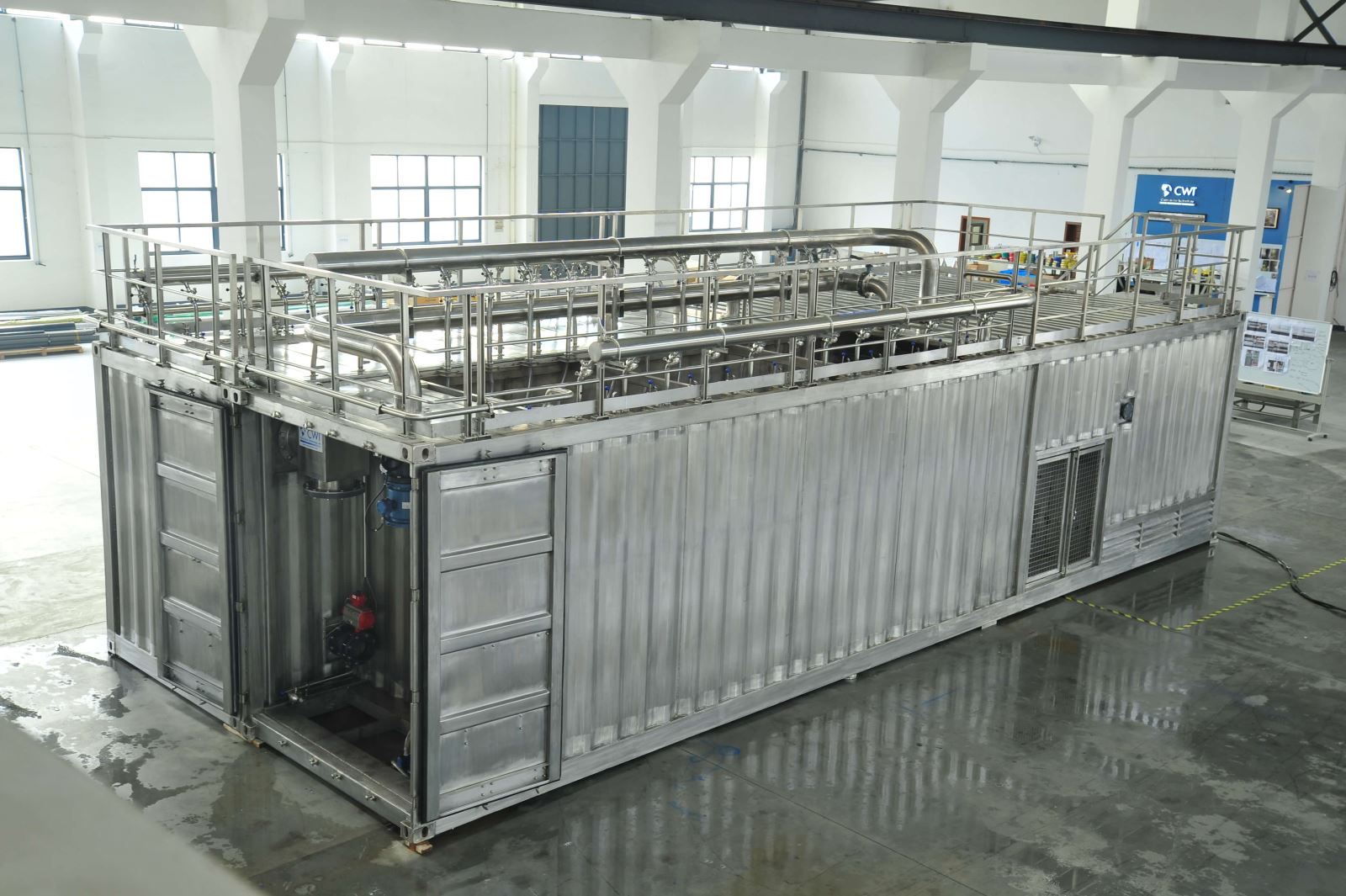

DAACH’s MBR can be containerized or can be a design construction in accordance to site conditions.

DAACH’s MBR Advantages:

  • Small Space Required

  • Better Solids Removal

  • Low or Eliminated Surcharges

  • Process Guarentee

  • Less Sludge Production

  • Lower Operational Costs

  • Increased Volumetric Loading

  • Decoupling of Hydraulic and Biomass Retention Time

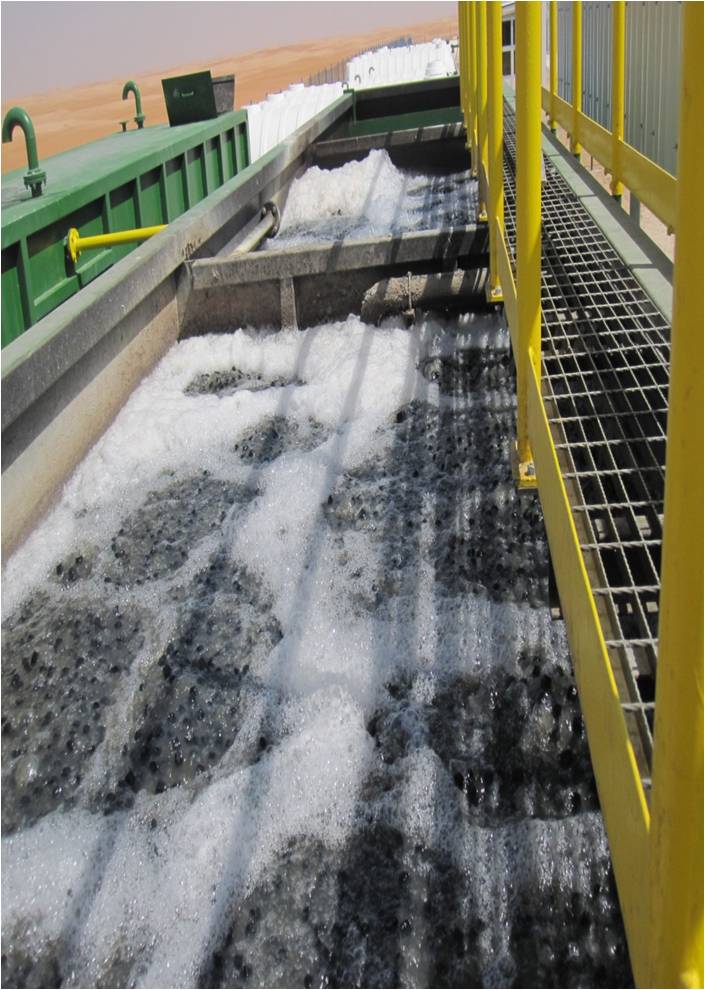

Moving Bed Biofilm Reactor (MBBR)

DAACH’s Membrane Bio Reactor (MBR) is a effecient biological treatment process based on a combination of conventional activated sludge and DAACH's brand of biofilm media. This process is ideally suited in a wide range of municipal and industrial wastewater treatment applications specifically looking into nutrient and Biological Oxygen Demand (BOD) removal.

DAACH’s MBBR plant requires 30% to 40 less space as compared to other conventional treatment systems. Which means less site activity, quick installation and commissioning. DAACH’s MBBR’s are specifically designed for durability, ease in transportation and relocation, easy maintenance and minimal upkeep cost and civil work.

DAACH’s MBBR Advantages:

  • Higher Efficiency with Smaller Footprint

  • (30 - 40% Savings in Space) and Less Civil Work

  • Specially Formulated Time-tested Media For Attached

  • Growth As Well As Sludge Settling

  • Low Sludge Generation

  • Less Sludge Production Thus Less Sludge Treatment and Disposal Cost
